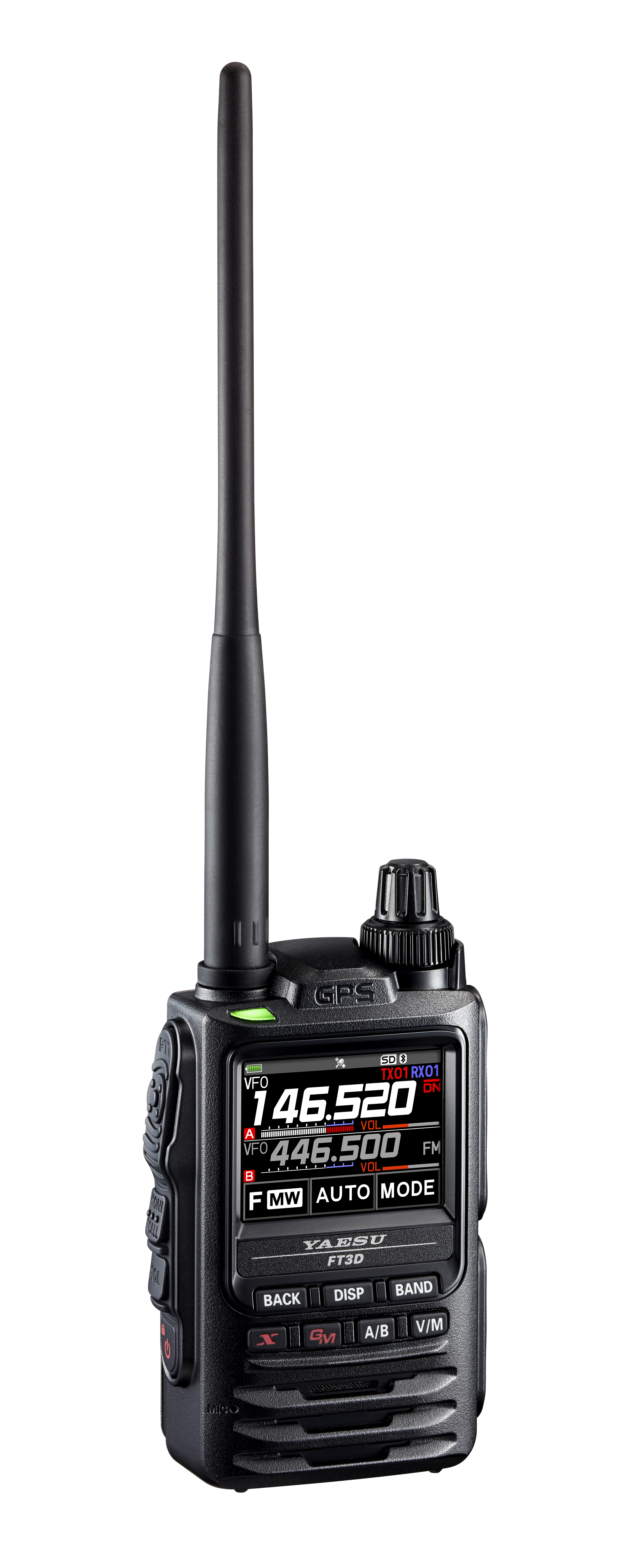

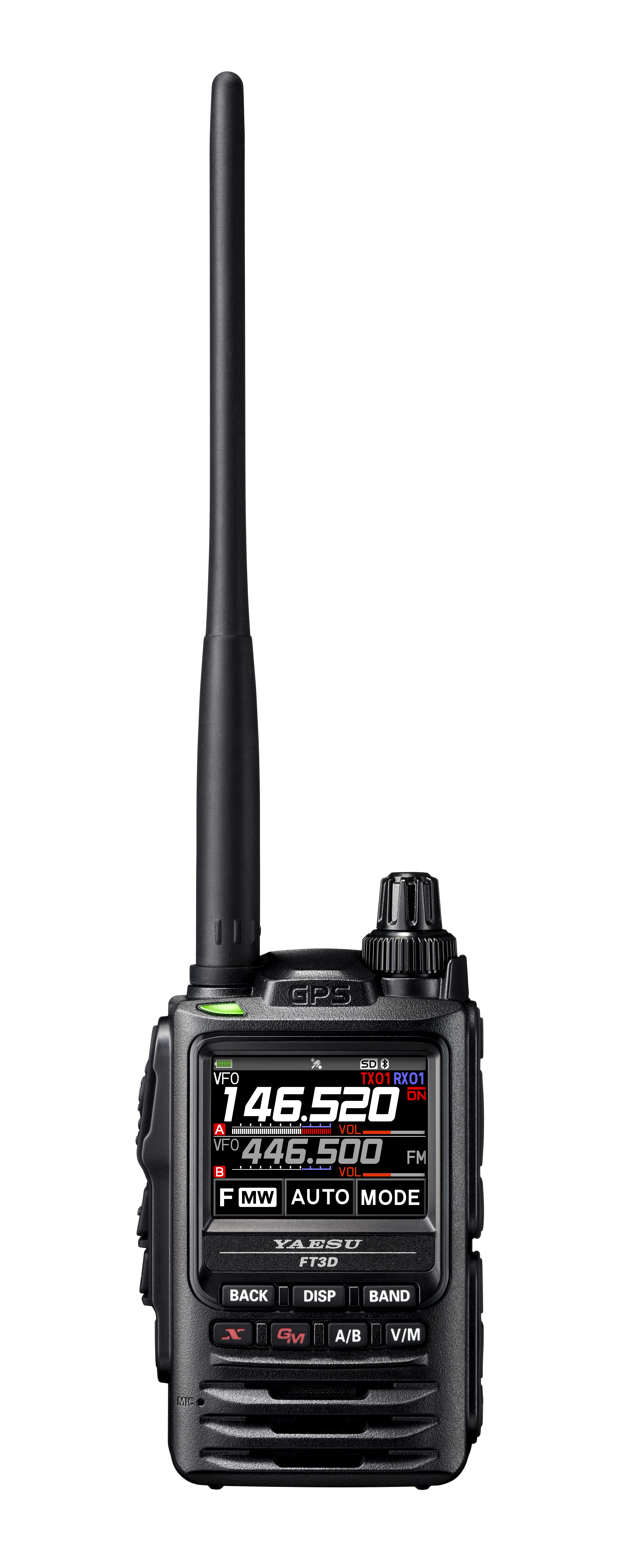

Click Image to Zoom InFT3DR
2 m/70 cm Dual-Band Handheld
5 W C4FM/FM Dual Band Digital Transceiver
320x240 full color TFT LCD display
1200/9600bps APRS Data Communication
| Antennas & Adapters | ||
| CN-3 | SMA to BNC Adaptor |
|
| Batteries | ||
| FBA-39 BATTERY CASE | Battery Tray 3xAA Cell |
|
| FNB-101LI | Li-ion Battery Pack (1100 mAh) |
|
| SBR-14LI | Li-ion Battery Pack (2200mAh) |
|
| Battery Chargers | ||
| E-DC-6 | DC Cable; plug and wire only |
|
| SAD-25B | AC Adapter |
|
| Cables | ||
| CT-169 | PC Connection Cable (Dsub9) |
|
| CT-170 | Data Cable |
|
| CT-176 | Data Cable (2.5) |
|
| SCU-39 | Wires X Connection Cable Kit | |
| Cases | ||
| SHC-34 | Soft Case | |
| Chargers | ||
| E-DC-6 | DC Cable; plug and wire only |
|
| SAD-25B | AC Adapter |
|
| SAD-25B | AC Adapter |
|
| SDD-13 | DC Cable with Cigarette-Lighter Plug |
|
| Chargers - DC | Vehicular | ||
| E-DC-6 | DC Cable; plug and wire only |
|
| Headsets | ||
| SSM-63A | Headset with Boom Mic and PTT/VOX (replaces MH-37A4B) |
|
| Microphones | ||
| CT-44 | Microphone Adapter (2 conductor female mic to single jack) |
|
| MH-85A11U | Microphone with Snapshot Camera |
|
| SSM-17A | Speaker Micrphone (replaces MH-34B4B) |
|
| SSM-57A | Earbud speaker mic with PTT |
|
| Miscellaneous | ||
| SHB-13 | Belt Clip |
|
| Programming | ||
| CT-168 | Cloning Cable |
|
The WIRES-X software is not getting the "ok" from your computer that something is connected to your computers mic jack. Typically you can connect any earpiece to your mic input jack and this should resolve the issue. If your computer has a single jack for both mic and speaker audio, then you may have to use a USB sound card that provides the two jacks. These can typically be purchased online for less than $10.
In PDN mode I get the error “Call cancelled in PDN mode” when I try to connect to “Room Name” in PDN mode.Some rooms are set up to what we call a “multi-mode” room. This means the room will accept both digital and analog node connections. In PDN (Personal Digital Node) mode you can only connect to the rooms that have been set up as “Digital-Only”. This means in PDN mode you can only connect to those rooms who only accept digital nodes. Mixed mode rooms (example: AMERICA_LINK) is multi-mode, it will not accept a PDN connection.
Why does the WIRES-X button not work with my hotpsot? Or why can I not save Wires X rooms in my radios categories area with my hotpsot?Off brand hotpsots do not use the true Fusion protocol. Hotpsots do not connect you to the WIRES-X network, they connect to what are known as YSF or FCS reflectors which are not part of the WIRES-X network.
C4FM Digital V/D Mode, Voice FR Mode, Data FR Mode and Conventional FM Mode
700 mW of audio power with C4FM clear and crisp audio quality
Dual Band Simultaneous Receive (V+V/ U+U/ V+U/ U+V)
Built-in Bluetooth Unit enables the easy hands-free operation (NEW!)
Highly visible 320 x 240 dot matrix Full-Color TFT Touch Panel Display
Band Scope Function enables monitoring up to 79 channels centered around the current VFO frequency with high-speed (NEW!)
CAM (Club Channel Activity Monitor) function (NEW!)
System Fusion II compatible such as AMS (Automatic Mode Select), DG-ID (Digital Group ID), and Smart Navigation functions
WiRES-X Portable Digital Node compatible
Built-in 66ch High-Sensitivity GPS Receiver
1200/9600bps APRS Data Communication
Snapshot Feature
Voice Recording function for the received and transmitting voice and audio
Built-in On/Off Timer, Automatic Power Off (APO) and Time-out Timer (TOT)
micro SD Card Slot (up to 32GB)
IPX5 Rating Water Protection
Supplied Accessories
Antenna 7.2 V 2,200 mAh Lithium Ion Battery Pack (SBR-14LI) Battery Charger (SAD-25) Belt Clip (SHB-13) USB Cable Operating Manual
SpecificationsFrequency Ranges: A(Main) Band RX: 0.5 - 1.8MHz (AM Broadcast) 1.8 - 30MHz (SW Band) 30 - 76MHz (50MHz HAM) 76 - 108MHz (FM Broadcast) 108 - 137MHz (Air Band) 137 - 174MHz (144MHz HAM) 174 - 222MHz (VHF TV) 222 - 420MHz (GEN1) 420 - 470MHz (430MHz HAM) 470 - 800MHz (UHF Band) 800 - 999.90MHz (GEN2, USA Cellular Blocked) B(Sub) Band RX: 108 - 137MHz (Air Band) 137 - 174MHz (144MHz HAM) 174 - 222MHz (VHF) 222 - 420MHz (GEN1) 420 - 470MHz (430MHz HAM) 470 - 580MHz (UHF Band) TX: 144 - 148MHz, 430 - 450MHz Circuit Type: NFM/ AM:Double-Conversion Superheterodyne FM /AM Radio: Direct-Conversion Modulation Type: F1D, F2D, F3E, F7W RF Power Output: 5W/ 2.5W/ 1W/ 0.3W (@ Batteery pack or EXT DC) Memory Channels: 1256 Waterproof Rating: IPX5 Case Size(W x H x D): 2.44"x 3.94"x 1.28" (62 x 100 x 32.5 mm)w/ SBR-14LI, w/o Knob & Antenna Weight: 9.95oz (282 g) w/ SBR-14LI and Antenna
