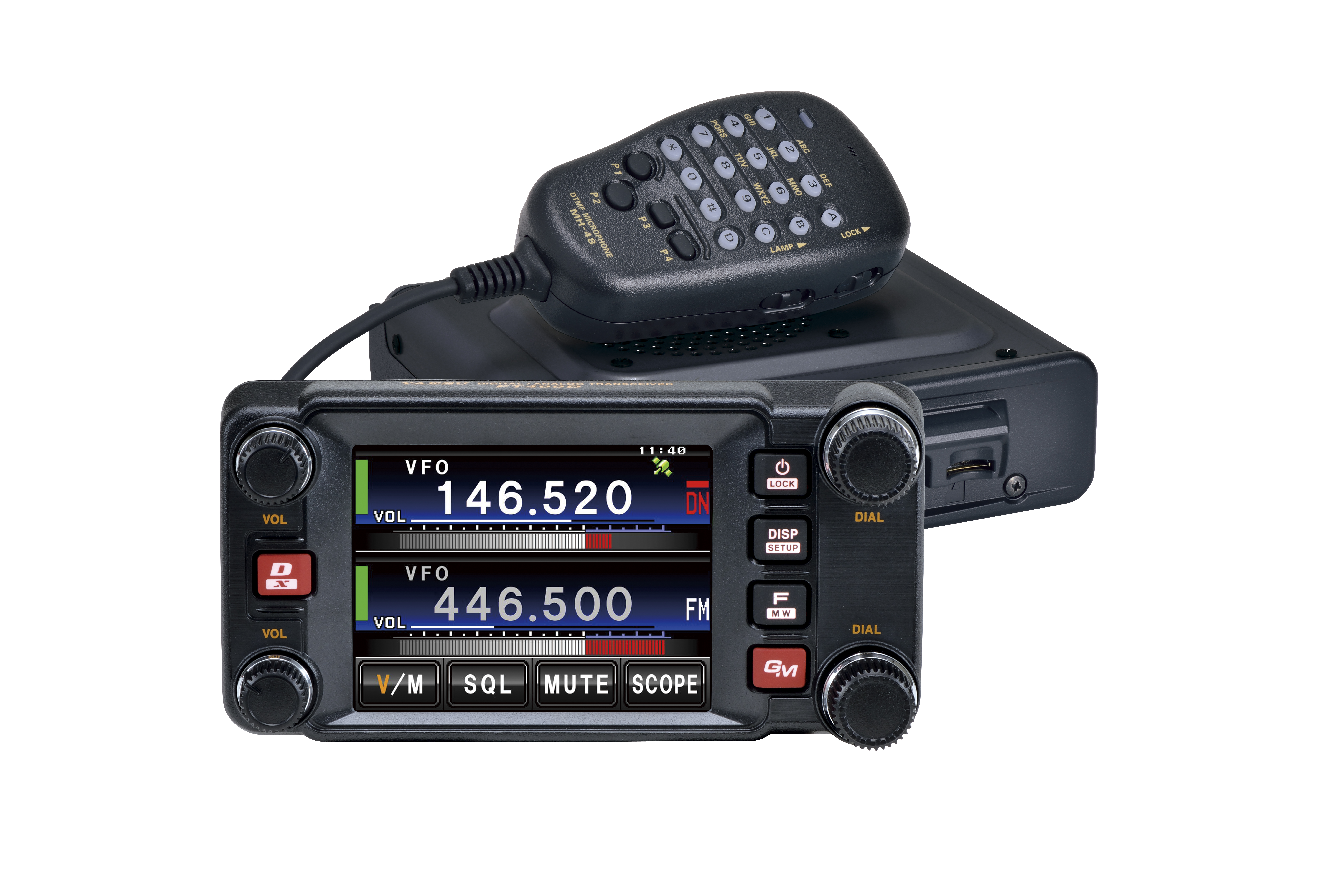

Click Image to Zoom InFTM-400DR
The FTM-400DR is the first mobile introduced to be a fully compatable radio partner for use on the YAESU System Fusion Dual Mode system. Compared to other digital modulation schemes within FDMA, C4FM has excellent communication quality (BER: Bit Error Rate characteristics). C4FM is the standard method for professional communication devices in FDMA, and is therefore considered to be the main stream digital communication mode in the future. Download our "Digital Communications Guide for Amateur Radio Operators" available on our web site that explains more about this efficient and reliable digital mode.
FTM-400DR
The FTM-400DR is the first mobile introduced to be a fully compatable radio partner for use on the YAESU System Fusion Dual Mode system. Compared to other digital modulation schemes within FDMA, C4FM has excellent communication quality (BER: Bit Error Rate characteristics). C4FM is the standard method for professional communication devices in FDMA, and is therefore considered to be the main stream digital communication mode in the future. Download our "Digital Communications Guide for Amateur Radio Operators" available on our web site that explains more about this efficient and reliable digital mode.
| Battery Chargers | ||
| SAD-25B | AC Adapter |
|
| Brackets | ||
| MMB-98 | Vacuum Cup Mount Bracket for Controller |
|
| Cables | ||
| CT-162 | Separation Cable 20ft (6m) |
|
| CT-163 | Data Cable MDIN10 pin to MDIN6 pin + Dsub9 |
|
| CT-164 | Data Cable MDIN10 pin to MDIN6 pin |
|
| CT-165 | Data Cable MDIN10 pin to Dsub9 | |
| SCU-40 | WIRES X Connection Cable Kit (Inc. SCU-20 and Audio Cable) | |
| Chargers | ||
| SAD-25B | AC Adapter |
|
| SAD-25B | AC Adapter |
|
| Microphones | ||
| MEK-2 | Microphone Extension Kit 10ft (3m) for SSM-85D and MH-42C6J | |
| MH-42C6J | Microphone |
|
| MH-48A6JA | DTMF Microphone |
|
| MH-85A11U | Microphone with Snapshot Camera |
|
| SCU-23 | Microphone Extension Cable 10 ft (3m) for MH-85A11U |
|
| Miscellaneous | ||
| SMB-201 | Desktop Cooling Fan (includes SAD-25B) | |
| Optional Boards | ||
| BU-2 | Bluetooth Adapter Unit | |
| FVS-2 | Voice Guide Unit |
|
| Power Supplies | ||
| FP-1023 | Power Supply (23A) |
|
| FP-1030A | Power Supply (30A) |
|
| Power Supply | ||
| FP-1030A | Power Supply (30A) |
|
| Programming | ||
| CT-166 | Cloning Cable |
|
| Speakers | ||
| MLS-200-M10 | Speaker - Waterproof (Equivalent to the IP55 Standard) High Power External speaker (8 W) Monoral Output | |
The WIRES-X software is not getting the "ok" from your computer that something is connected to your computers mic jack. Typically you can connect any earpiece to your mic input jack and this should resolve the issue. If your computer has a single jack for both mic and speaker audio, then you may have to use a USB sound card that provides the two jacks. These can typically be purchased online for less than $10.
In PDN mode I get the error “Call cancelled in PDN mode” when I try to connect to “Room Name” in PDN mode.Some rooms are set up to what we call a “multi-mode” room. This means the room will accept both digital and analog node connections. In PDN (Personal Digital Node) mode you can only connect to the rooms that have been set up as “Digital-Only”. This means in PDN mode you can only connect to those rooms who only accept digital nodes. Mixed mode rooms (example: AMERICA_LINK) is multi-mode, it will not accept a PDN connection.
Why does the WIRES-X button not work with my hotpsot? Or why can I not save Wires X rooms in my radios categories area with my hotpsot?Off brand hotpsots do not use the true fusion protocol. Hotpsots do not connect you to the WIRES-X network, they connect to what are known as YSF or FCS reflectors which are not part of the WIRES-X network.
The FTM-400DR performs flawlessly using both Analog FM and C4FM Digital. So there will be no loss of communications among friends who have not yet chosen to transition to Digital.
Compact PackagingCase Size: Radio Unit 5.5"(W) x 1.6"(H) x 4.9"(D) w/o Fan Controller 5.5"(W) x 2.8"(H) x 0.8"(D) (140 x 72 x 20mm) w/o Knob Weight: Approx. 2.64 lbs with Radio Unit, Controller, Control Cable
Big Beautiful DisplayEnjoy the easy of operation that comes from the FTM-400 big 3.5-inch full color and its touch panel operation. The icon symbols, multi-function key display and pop-up messages are all displayed in high-resolution color thanks to the full-color, high luminance TFT liquid crystal screen. The settings and status of the wireless devices are displayed in an easy-to-understand format. You can perform various operations simply and easily by gently touching the screen. Screen options include: - Band Scope Screen - Altitude Screen - APRS® Screen - Smart Navigation Screen - Frequency Direct Input Screen - Clock / Timer Screen
Rugged Powerful TransmitterTransmitter RF Power Output: 50 W / 20 W / 5 W. Modulation Type: F1D, F2D, F3E: Variable Reactance Modulation, F7W: 4FSK (C4FM)
High Audio Output PowerLoud 3 Watt Audio Outputs with the internal speaker. 8 Watt output using Optional External Speaker (MLS-200-M10)
Frequency RangeReceive * 108 - 137 MHz (Air Band) 137 - 174 MHz (144 MHz HAM) 174 - 400 MHz (GEN1) 400 - 480 MHz (430 MHz HAM) 480 - 999.99 MHz (GEN2) Cellular Blocked (North American model) Transmitter 144 - 146 MHz or 144 - 148 MHz 430 - 440 MHz or 430 - 450 MHz * Guaranteed within 144/430 MHz amateur bands only.
APRS® Included1200/9600bps APRS® (Automatic Packet Reporting System) Data communication capability included.
Cross-band CapableThe FTM-400DR is cross-band capable when in Analog mode; a very important feature for emergency situations, etc.
GPS IncludedBuilt-in GPS receiver and antenna provides location, time, direction and APRS® information. A GPS Logging Function is included. External GPS devices can be connected.
Hands-free OperationLaw abiding (where required) Hands-free operation is available by using the optional wireless Bluetooth® unit and headset. Optional Bluetooth® unit (BU-2) and Headset (BH-2A) are required.
Snapshot Function (Image Data Transmission)Simply connect an MH-85A11U (option) microphone with camera. Press the microphone shutter button to take snapshots, and then the image data can be displayed on the screen, and easily sent to other C4FM FDMA digital transceivers. Image data which was sent from a group member is displayed on the full-color screen. This image data also retains a time record and the GPS location data of the snapshot. It is easy to navigate to that pictured location by using back track function. In addition, you can observe on the screen, whether or not transmitted data was successfully received by the member station. The snapshot image or received data is stored in a high capacity micro SD card. You can recall and send that image data from the SD card anytime. The pictures and data files may be easily viewed and edited by using a personal computer. * Micro SD card (not included) is required for the Snapshot function
Digital Group Monitor (GM) FunctionThe digital GM function automatically checks whether members registered to a group are within the communication range, and displays information such as the distance and orientation for each call sign on the screen. This useful function not only enables you to see which friends are within communication range, it also permits you to see at a glance where all group members are located. Additionally, this function can be used to send messages and image data between group members. The Digital Group Monitor applies to direct communications between members; it is not applicable through a repeater. This is valuable feature for public service group activites, Search & Rescue operations, and any number of other uses limited only by your imagination!
Smart Navigation FunctionReal-time navigation function enables location checking at any time. In digital V/D mode, information such as position data is transmitted together with voice signals so the distance and direction to the other stations can be displayed in real-time while communicating with them.
Backtrack FunctionThe Backtrack Function enables navigation to a registered location at the touch of a button. When hiking or camping, simply register your starting point or campsite before departure, and the distance and orientation from the current location are displayed on the screen. This is valuable feature for Search & Rescue operations as well as casual hiking and camping.
Voice Guide and Recording FunctionOptional Voice Guide Unit (FVS-2) announces your current operating frequency, band change and APRS® messages. You can record up to 5 minutes of received signals, or continuously record the last 30 seconds of received audio.
Other Useful Features- Real-time Band Scope with uninterrupted RX audio - 500 Memory Channels for each A(Main) band and B(Sub) band - Storage of the Memory channels and personal settings on an inserted micro SD card - By using a micro SD card, it is easy to copy and transfer the radio data to other compatible radios - Versatile Scanning Receiver for Monitoring Enthusiasts (VFO Scan, Memory Scan, etc) - Analog and Digital Clock - Timer function: Event timer with Lap or count down functions
*Trademarks* The Bluetooth® name and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such trademarks by Yaesu Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners. * APRS® is a registered trademark of Bob Bruninga, WB4APR.
