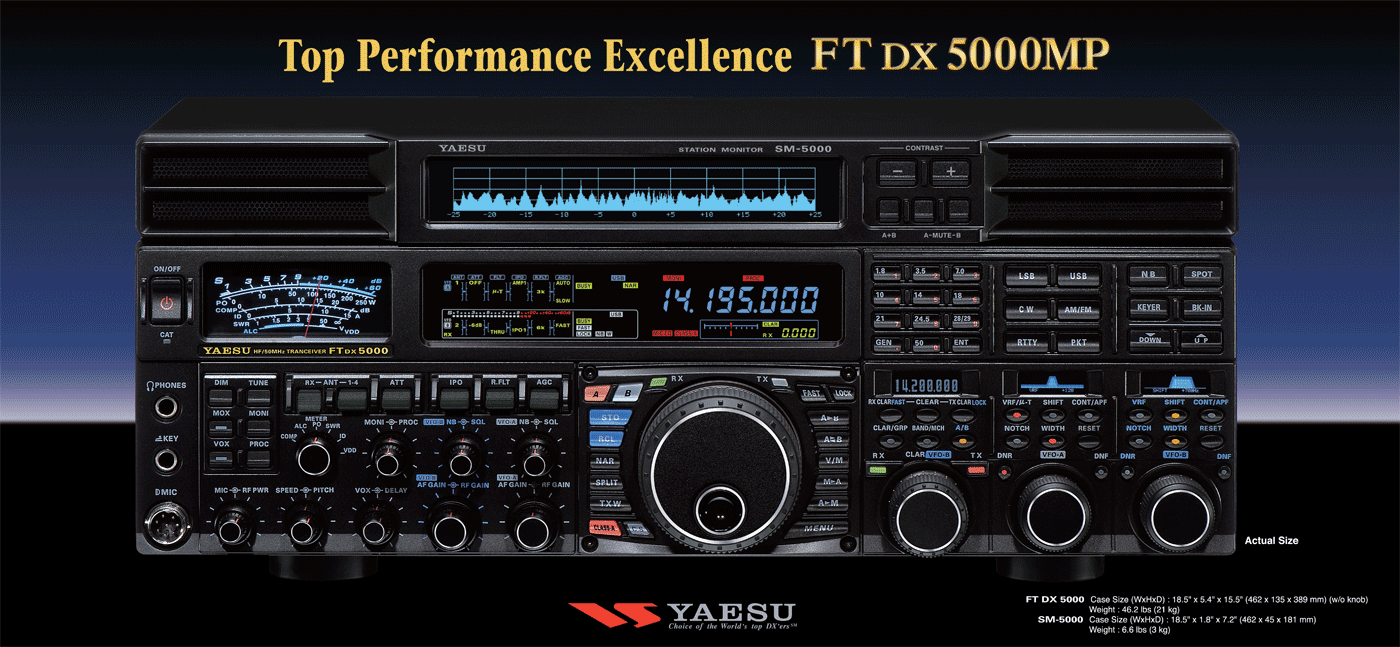

Click Image to Zoom InFT DX 5000MP HF/50 MHz 200W Transceiver
The FT DX 5000MP HF/50 MHz 200 Watt Transceiver is a Premium Class Yaesu radio with 2 Independent Receivers plus many unique options and accessories designed to meet the Performance Requirements of even the most demanding Amateur Radio operator.
The FT DX 5000 and FT DX 5000D models are no longer in production however they are still supported by Yaesu.
FT DX 5000MP HF/50 MHz 200W Transceiver
The FT DX 5000MP HF/50 MHz 200 Watt Transceiver is a Premium Class Yaesu radio with 2 Independent Receivers plus many unique options and accessories designed to meet the Performance Requirements of even the most demanding Amateur Radio operator.
The FT DX 5000 and FT DX 5000D models are no longer in production however they are still supported by Yaesu.
| Cables | ||
| SCU-21 | Connection Cable | |
| SCU-27 | Antenna Rotator Connection Cable | |
| Headsets | ||
| YH-77STA | Lightweight Stereo Headset for use with HF transcievers |
|
| Headsets and Surveillance | ||
| YH-77STA | Lightweight Stereo Headset for use with HF transcievers |
|
| Microphones | ||
| M-1 | The Condenser Microphone Element produces greater frequency response and clear, crisp audio characteristics perfect for being heard on crowd bands and in big DX pile-ups, while the Dynamic Microphone Element delivers the rich low-mid tonalities, favored for local QSOs. The response of each microphone element may be adjusted independently using the internal Nine (9) Band Graphic Equalizer. Each element has a separate volume control for independent adjustment of output levels. The output of each microphone may be selected separately, or they may be combined to produce the most pleasant tonality. Both the Condenser Element and Dynamic Element in the M-1 utilize the Nine (9) Band Graphic Equalizer (63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz). Each element’s frequency response is independently adjustable. Two (2) frequency response memories and a “through” mode are provided for each element, and are easily switchable by one-touch buttons on the microphone base. The PTT key uses three Air-Cylinder Tubes which afford a smooth and comfortable long keystone. The contactless magnetic switch ensures long-life and stable operation. Other included features are; Recording and playback capability (20 seconds), to confirm the audio tonality; Large red TX LED Indicator; Large Graphic Equalizer and Frequency Response Scope LCD Display with anti-reflective coating; Headphone jack; Touch PTT keylock; Built-in low-cut filter to shape the low frequency response; Cannon-type (XLR) output plug connector; and Audio output volume control for headphones. Two screwdrivers are included to precisely adjust the graphic equalizer and microphone gains. |
|
| M-100 | The Condenser Microphone Element produces greater overall frequency response - with clear and crisp audio characteristics - while the Dynamic Microphone Element delivers enhanced low and mid-range frequency response. A set of one-touch buttons on the microphone base enable the two microphone elements to be used independently or in combinations to create the most favorable sound quality for each person’s unique voice characteristics. Built-in Low-Cut (cut-off at 340Hz, -6dB/octave) and High-Cut (cut-off at 2kHz, -6dB/octave) controls shape the low/ high frequency responses enabling changes to be made in the transmitted audio characteristics, according to user’s preference and operating conditions. The supplied TBC (Treble Boost Cowling) further enhances the voice response attributes in the important 1,000 – 1,500 Hz range, in order to develop a penetrating signal with a condensed and specific texture. The PTT key actuates three Air-Cylinder Tubes, which afford a smooth and comfortable keystroke – free of a hard “click”. The incorporation of a magnetic switch ensures long-life and stable operation. The highly visible ON AIR LED Indicator clearly informs the user when the PTT circuit is active. The supplied microphone cable can be used to provide power to the M-100 simply by connecting with compatible YAESU HF transceivers*. Current YAESU HF radio owners can immediately start using this new microphone as an exciting and valuable addition to their current ham radio operation. Whether it’s for wider-range audio with more presence or focused energy to cut through the pile-ups, the M-100 is an exceptional station asset. While the recently released M-1 microphone provides the ultimate flexibility in enhancing each user’s distinctive voice characteristics - utilizing a full-featured Nine Band Graphic Equalizer - we are confident that the carefully selected feature configuration of the new M-100 offers the advantage of combining the two different microphone element characteristics with simplified operation, all at a very attractive price point. |
|
| M-70D | The M-70 utilizes a directional condenser microphone element which has a prescisely tuned the frequency response to obtain clear and crisp audio quality.. The PTT uses three Air-Cylinder tubes similar to the Reference Microphone M-1 to provide a solid and smooth extended operation. A simple one-touch PTT keylock button is placed just above the PTT key for those long rag chews. Built-in Low-Cut filter allows to shaping of the low frequency response (cut off at 340Hz, -6dB/octave). ON/ OFF is selectable by a sliding switch located on the bottom of the microphone. An isolation transformer is integrated in the circuit board to enhance the audio quality. The M-70 is compatible with all YAESU HF transceivers equipped with round 8-pin microphone connector or 8-pin modular microphone connector. We believe this Microphone will have a positive impact on your YAESU HF transceivers business. |
|
| M-90D | The M-90D and M-90MS utilizes a dynamic microphone element that is finely tuned to deliver rich low to mid frequency response desirable for a clear and concise conversation. Using a windscreen cover and a directional micophone element, the structure of the microphone of the M-90D and M- 90MS is designed to concentrate voice input from the front while reducing ambient noise from the side. Built-in Low-Cut filter creates clear and crisp audio characteristics by shaping the low frequency response (cut off at 340Hz, -6dB/octave). An isolation transformer is integrated in the circuit board in order to enhance the audio quality. The M-90D and M-90MS* are compatible with all YAESU HF transceivers equipped with the round 8-pin microphone connector or the 8-pin modular microphone connector. The PTT of the M-90D uses three Air-Cylinder tubes similar to the Reference Microphone M-1. This provides solid and smooth extended operation. A simple one-touch PTT keylock button is placed directly above the PTT key for those long rag chews. |
|
| M-90MS | Microphone Stand Kit (microphone stand is not included). |
|
| SCU-53 |
Cable 11.8" (300mm) for M-90MS Kit: 8 pin modular jack to round 8 pin plug *SCU-35 cable is required only when connecting the M-90MS with the HF Transceivers equipped with a round 8-pin microphone connector. |
|
| Miscellaneous | ||
| SCU-17 | USB Interface Unit |
|
| Speakers | ||
| SM-5000 | Station Monitor with stereo speaker system | |
| SP-2000 Speaker | External Speaker with Audio Filters |
|
SM-5000 Station Monitor – Optional; 300 Hz Roofing Filter – Included; ±0.05ppm OCXO – Included.
FT DX 5000D Brief Description - NO LONGER IN PRODUCTIONSM-5000 Station Monitor – Included; 300 Hz Roofing Filter – Optional; ±0.5ppm TXCO – Included.
FT DX 5000 Brief Description - NO LONGER IN PRODUCTIONSM-5000 Station Monitor – Optional; 300 Hz Roofing Filter – Optional; ±0.5ppm TXCO – Included.
Rugged 200 Watt Output PowerThe FTDX 5000MP robust and high-power Final Amplifier Stage incorporates two super reliable FET, VRF-150 (Drain-Source Voltage 170 V/Gate Source Voltage ±40 V, Total Device Dissipation 300 W) in a push-pull configuration, offers solid 200 W output (75 W Class A operation).
Internal Power SupplyThe FT DX 5000MP has its own built-in power supply
TWO Totally Independent ReceiversAll FT DX 5000 Transceivers include Two (2) Totally Independent Receivers to give you Performance and Flexibility previously only provided by much more expensive radios.
SUPERB 3rd-Order Dynamic Range & 3rd-Order Intercept Point (IP3)
SSB (2.4kHz BW)
10 kHz SEP.:106 dB, IP3 +40 dBm
CW (500Hz BW)
10 kHz SEP:112 dB, IP3 +40 dBm
2 kHz SEP. :105 dB, IP3 +36 dBm
1 kHz SEP. : 99 dB, IP3 +25 dBm
*VFO-A/Main Receiver @ 14 MHz, IPO1
Super Sharp “Roofing” FiltersSuper sharp “Roofing” filters for VFO-A/Main Receiver. Filters are Selectable between *300 Hz, 600 Hz, 3 kHz (6-pole crystal filter), 6 kHz, 15 kHz (4-pole MCF) *300 Hz filter was optional for FTDX 5000 and FTDX 5000D. It is included in the FTDX 5000MP
High Performance Yaesu Custom-designed 32-bit Floating Point DSPThe legendary high performance Yaesu Custom-designed 32-bit Floating Point DSP based on the TI TMS320C6727B (@300 MHz), one EACH for VFO-A and VFO-B.
Variable CW Audio Peak Filter & High/Low-Cut FilteringVariable CW Audio Peak Filter, and High/Low-Cut filtering created through the very latest in DSP technology. - CW Width: 50/100/150/200/250/300/350/400/450/500 Hz - CW Pitch Frequency: 300~1050 Hz (10 Hz Steps)
True Analog Meter PrecisionEnjoy the same Huge Size Metering System as the FT DX 9000 series with True Analog Precision and Instant Reaction Time.
New Function Displays for Ease of OperationThree Electro Luminescence clear Displays included for easier operation and control of the Sub-Frequency, Graphical Wave and Menu function.
IF Output AvailableIF Output (9 MHz) from VFO-A/Main Receiver
Practical Level Indication System for Most Important SettingsThe FTDX 5000MP provides loads of practical Level Indication that clearly show settings of Mic-Gain / RF Power / CW-Pitch / Keyer Speed / Processor Level / VOX Delay Time / Break-In Delay Time. -They can be controlled ON/OFF independently!
Introducing the SM-5000 Station Monitor BandscopeIf you need a good Bandscope to enhance your operations, you are going to love our all-new SM-5000 matching station monitor. Included with the Bandscope is a complete, enhanced stereo speaker system with superb audio quality - the speakers are point at you instead of up into the air above the radio!
Other Valuable Options- Yaesu Data Management Unit DMU-2000, and utilize its powerful Audio Scope, Oscilloscope, Spectrum Scope, logging, and Rotator Control capabilities using your own personally selected and purchased computer display monitor. - Yaesu External Fully-Automatic Micro-Tuning Units. Three modes available: A (160 m Band), B (80 & 40 m Bands), C (30 & 20 m Bands)
